How to Read Your Home's Existing Ethernet Wiring Before Buying UniFi Gear
Before buying UniFi hardware, audit what your home already has, where the ethernet drops land, whether they home-run to a patch panel, and which are live.
Short answer
Before buying UniFi hardware, audit what your home already has, where the ethernet drops land, whether they home-run to a patch panel, and which are live, so the new gear fits the wiring instead of fighting it.
01
Map every ethernet drop to its destination and confirm which are live before buying hardware.
02
A home-run patch panel makes a UniFi system much easier to plan and support.
03
Existing wiring often determines where the network closet and access points can go.

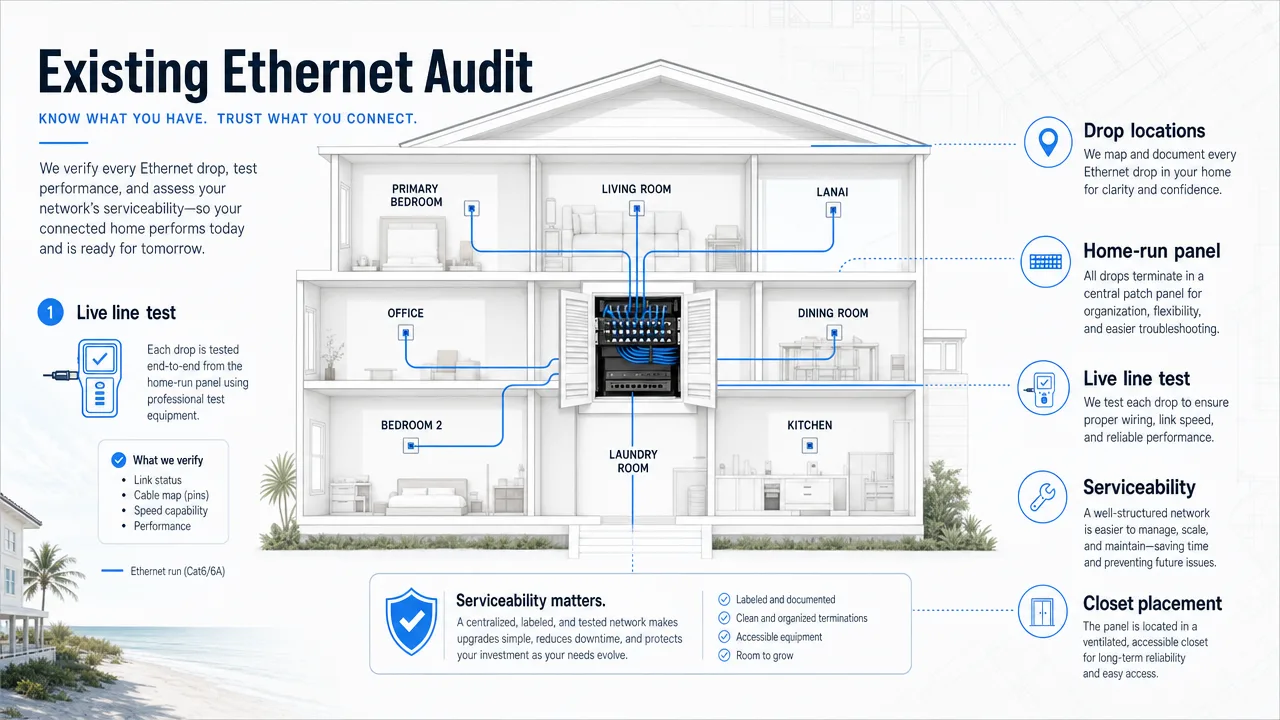

Wiring Audit
What to check before you buy
Map each drop, confirm the patch panel, and test which lines are live, so new gear fits the wiring you already have.
- Drop locations
- Home-run panel
- Live line test
- Serviceability
- Closet placement
Start With What You Have
Audit the wiring before you buy the gear
Many large homes already have ethernet runs from construction, but no one documented where they go. Buying UniFi hardware before understanding that wiring usually leads to surprises.
An audit maps each drop to its room, confirms whether it home-runs to a central panel, and tests which lines are actually live and usable.
A patch panel changes everything
When drops home-run to a single patch panel, the network closet becomes a clean, maintainable hub. Switches, the gateway, and the recorder all live in one place.
When drops are daisy-chained or scattered, the plan has to account for that, and sometimes a few new runs are the difference between a clean system and a fragile one.
Existing wiring shapes the plan
The location of live drops often decides where access points and cameras can go without new cabling. That keeps the project focused and the cost predictable.
A documented audit also gives a future technician a head start instead of a guessing game.
FAQ
Common homeowner questions.
What if my home has no ethernet wiring?
Then the plan starts from access point and camera locations and works backward to the runs needed, coordinated with licensed partners where physical work is required.
How do I know which drops are live?
A simple cable test on each drop, traced back to the panel, confirms which lines are connected and usable.
Do I need a patch panel for UniFi?
Not strictly, but a home-run patch panel makes a UniFi system much easier to plan, support, and expand.
